Plane Shuttle Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description

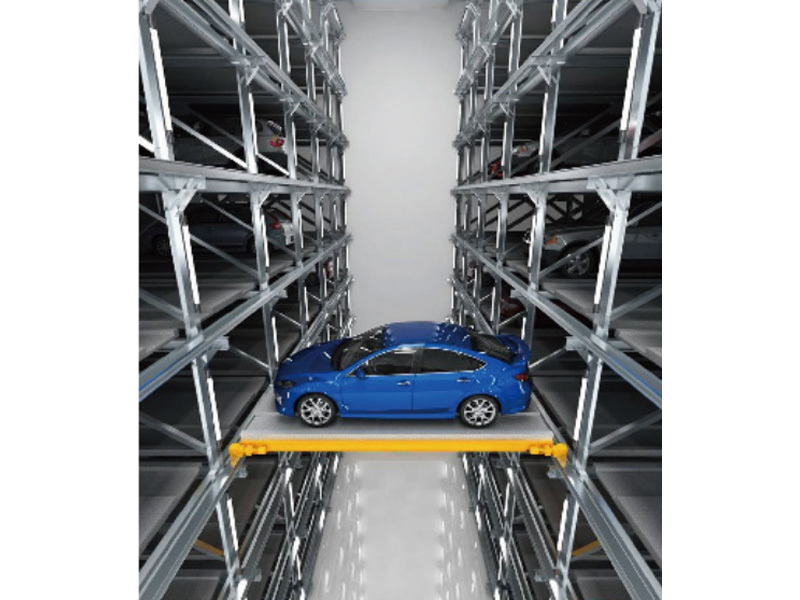

Refers to the use of transport trolleys or heavy machines on the same floor to move cars on a plane, or to move the loading plate's plane horizontally to access and park vehicles, or to use transport trolleys and lifting to achieve multi-level plane movement to access and park vehicles. The parking equipment is part of the mechanised, stereo garage with enormous wheels.
Advantage
● High degree of automation and rapid processing
● Continuous entry and exit, high parking efficiency
● Convenient and comfortable access to the car
● Multiple people can access the vehicle at the same time
● Overall compact structure, floor height, and high space utilization rate
● Fully enclosed construction, good safety of access vehicle
● High efficiency and low noise
● No car exhaust, clean and environmental protection
Scope of application
Primarily utilised for large garages, outdoor parking lots, and notably for both the requirements of fixing parking space and the ground's ability to do green gardening, etc., these structures can be developed as standalone garage buildings and interior duplex garages. One of the most perfect sorts of mechanical parking garage is one that is commonly seen in airports, stations, downtown business districts, stadiums, office buildings, and other urban locations.
Technical Parameter List
| Equipment model | PPY-□□D | |
| Equipment name | Comb-type plane mobile parking garage | |
| Vehicle capacity | Depend on the project | |
| Max specification | Car length | 5200mm |
| Car width | 1850mm | |
| Car height | 1550/1850mm | |
| Capacity weight | ≤2000kg | |
| Lifting speed | 60-90m/min | |
| Transverse movement | 60-90m/min | |
| Vertical displacement speed | 45m/min | |
| Rotation speed | 3.68r/min | |
| Lifting motor power | 22kW | |
| Transverse movement motor power | 4x0.4kW | |
| Vertical displacement motor power | 4kW | |
| Rotation motor power | 1.5kW | |
| Control mode | Control | Longitudinal motor power |
| Driving | VVVF variable frequency speed regulation | |
| Network | Network with building intellignt system through local area networksystem via LAN | |
| Single-story height | 2350mm/2850mm | |
| Power supply | Three-phase five-wire system AC380 50Hz | |
| Operation mode | Mobile terminal equipment | |
The company mainly engaged in intelligent mechanical garages, intelligent robots, new energy saving technology research anddevelopment. manufacturing, sales, installation, maintenance and mechanical parts supply business. Since its establishment, thecompany has won the support and praise of domestic and foreign intelligent technology research institutions with scientific and advanced technology and exquisite manufacturng process.
