Vertical Circulation-Typed Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description

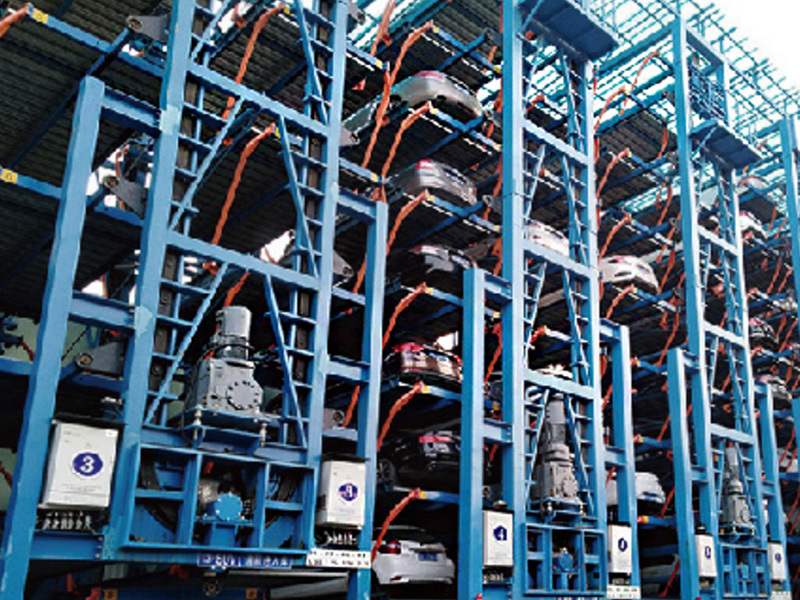

Vehicles can be stored in multiple layers in PCX's vertical circular parking garage since the vehicle-carrying plate rotates up and down. High-rise office buildings, apartments, hospitals, comprehensive commercial buildings, new detached garages and old city rebuilding arethe most common applications for vertical parking equipment.
Advantage
● This style of garage has a compact footprint and a huge capacity. It can accommodate eight to twelve vehicles using two parking places on the ground;
● The garage can be put up singly or in rows, depending on the ground situation, making good use of the available space;
● Each garage has an entrance and exit, and entry and exit are adjustable. When vehicles are consolidated and accessed, a garage formed in a row provides the advantage of low access times to reduce congestion;
● Stable mechanical performance, easy installation and operation, flexible configuration, convenient access to the car, reliable braking and high levels of safety;
● Can use a variety of intelligent types to manage and access vehicles, such as swiping cards, fingerprints, etc;
● The appearance can be decorated arbitrarily to beautify the environment;
● Short time and high speed for vehicle access.
Scope of application
Vertical mechanical stereo parking equipment is commonly used in residential communities, government agencies, hotels, huge parking lots, hospitals, business areas, small parking lots near subways, the renovation of historic residential neighbourhoods, and other locations where parking is difficult.
Technical Parameter List
| Equipment type | PCX | |
| Equipment name | Vertical circulation-typed garage | |
| Vehicle capacity | Depend on the project | |
| Max specification | Car length | 5200mm |
| Car width | 1900mm | |
| Car height | 2000mm | |
| Capacity weight | ≤1850kg | |
| Lifting motor power | 7.5kW | |
| Control mode | Control | PLC programmable intelligent module control system |
| Driving | VVVF variable frequency speed regulation | |
| Network | Network with building intelligent system through local area networksystem via LAN | |
| Single-story height (including floor thickness) | 2350mm/2850mm | |
| Power Supply | Three-phase five-wire system AC380 50Hz | |
| Operation mode | Manual key/IC card | |
The company mainly engaged in intelligent mechanical garages, intelligent robots, new energy saving technology research anddevelopment. manufacturing, sales, installation, maintenance and mechanical parts supply business. Since its establishment, thecompany has won the support and praise of domestic and foreign intelligent technology research institutions with scientific and advanced technology and exquisite manufacturng process.
Classic Case
Changzhou Cultural Square
Changzhou Dinosaur Valley Hot Spring
Maternal and Child Health Hospital
Shuimu Nianhua Villa
