Side Moving No-Evasion Intelligent Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description

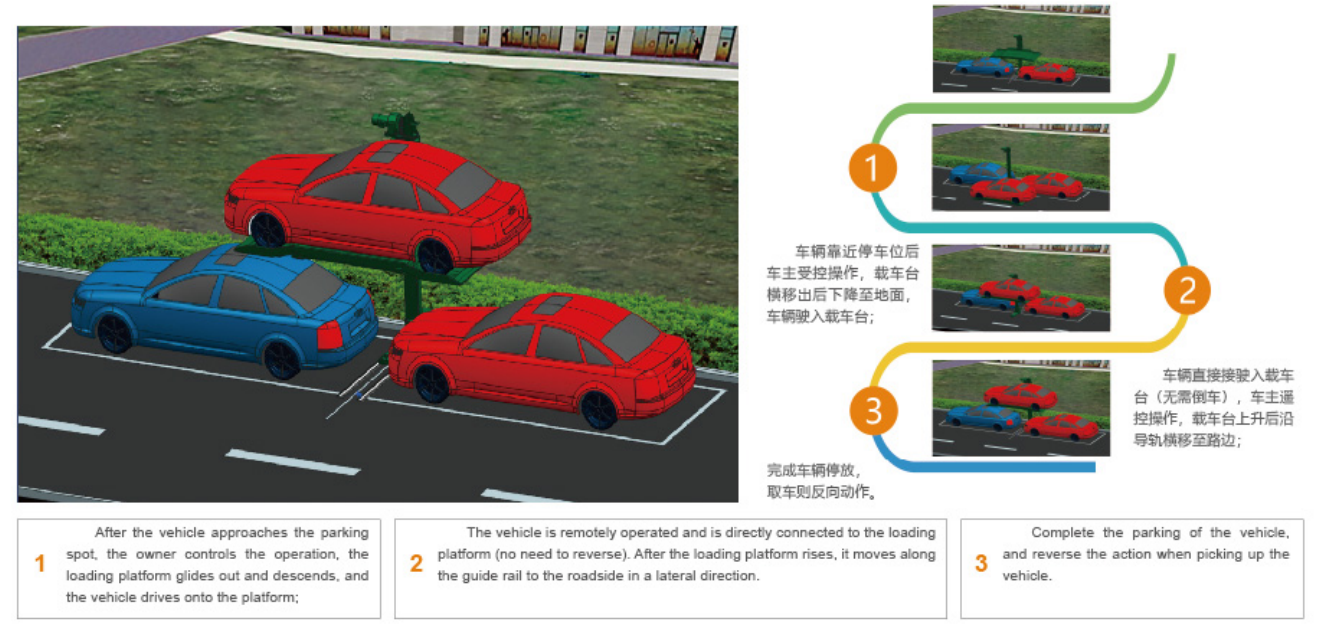

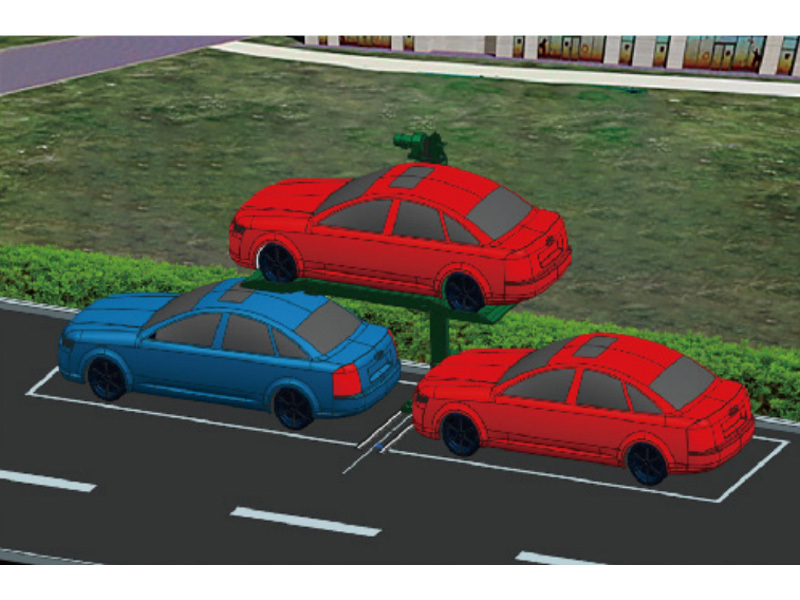

Side moving no-evasion stereo parking equipment is an unattended management intelligent stereo parking equipment that utilises temporary parking on the road to park above the current parking spots along the road.
Advantage
● Simple and fast construction, beautiful appearance;
● No need to avoid parking, faster intelligent access;
● Reliable safety performance;
● Clear ownership of equipment;
● Single column and double table, reducing equipment cost;
● Low noise, low energy consumption, rechargeable after parking.
Scope of application
The side moving no-evasion parking equipment can be installed in the original ground parking spaces in squares, roadsides and residential areas, and can be widely used in roadside parking spaces, residential areas and other narrow and lengthy areas.
Technical Parameter List
| Equipment items | Unit | Standard | Aggravated | |
| Net hight | mm | ≥3600 | ||
| Car size | Length x Width | mm | upper layer: ≤5000*1850 | upper layer:≤5000*1950 |
| Weight | kg | ≤2000 | ≤2500 | |
| Rated speed | Lift | m/min | 5 | |
| Move | m/min | 8 | ||
| Motor power | Lift | kw | 2.2 | |
| Move | kw | 0.75 | ||
| Drive mode | Motor plus chain | |||
| Operation mode | Remote control/keys/touch screen | |||
| Power supply | 3N,AC,380V,50Hz | |||
| Optional | Charging pile | |||
