Smart Lifting Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description

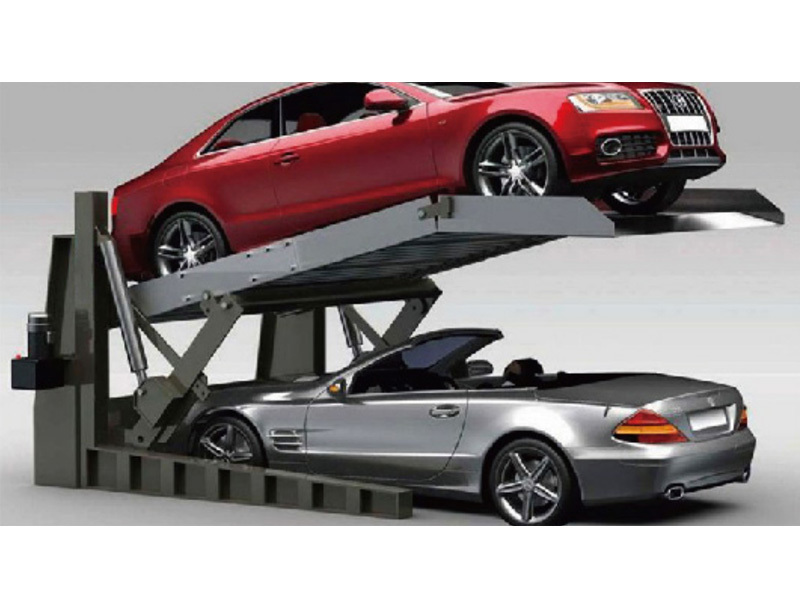

The smart lifting stereo parking garage divides the parking space into upper and lower floors or more, and the parking equipment that deposits or removes automobiles using a lifting mechanism or a pitching mechanism is known as simple lifting mechanical parking equipment.
Advantage
● It consists of five major parts: steel structure, vehicle board, transmission system, control system, and safety protection measures
● The automobile is a cost-effective parking device on the market due to its basic design and adaptable operation
● The equipment is equipped with multiple safety protection devices,running smoothly, safely and reliably
● Make full use of the limited space, and more than double the parking space under the same parking area
Scope of application
Avoidance-free parking equipment can be installed in the original ground parking spaces and underground parking garages in squares, buildings and residential quarters, and can be widely used in narrow areas such as large hotels, supermarkets, shopping malls, commercial office buildings, institutions and residential quarters.
Technical Parameter List
| Equipment type | PJS | |
| Equipment name | Smart lifting stereo garage | |
| Vehicle capacity | 2 vehicles | |
| Max specification | Car length | 5500mm |
| Car width | 3100mm | |
| Car height | 2450mm | |
| Capacity weight | ≤2000kg | |
| Lifting method | Hydraulic type | |
| Lifting speed | 2-3m/min | |
| Lifting motor power | 2.2kW | |
| Control mode | Control | PLC programmable intelligent module control system |
| Driving | VVVF variable frequency speed regulation | |
| Network | Networking with the intelligent system of the building through LAN | |
| Power supply | Three-phase five-wire system AC380 50Hz | |
| Operation mode | Button switch operation | |
The company mainly engaged in intelligent mechanical garages, intelligent robots, new energy saving technology research anddevelopment. manufacturing, sales, installation, maintenance and mechanical parts supply business. Since its establishment, thecompany has won the support and praise of domestic and foreign intelligent technology research institutions with scientific and advanced technology and exquisite manufacturng process.
Classic Case
Changzhou Cultural Square
Changzhou Dinosaur Valley Hot Spring
Maternal and Child Health Hospital
Shuimu Nianhua Villa
