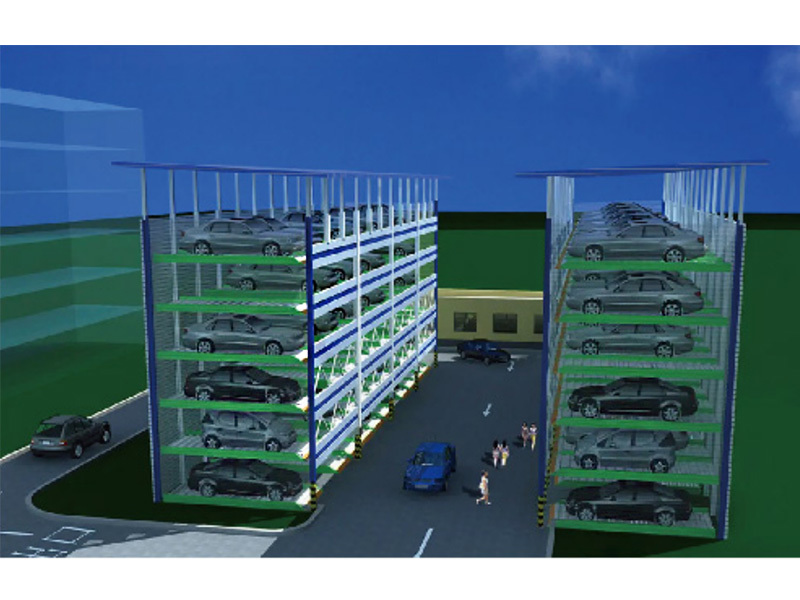

Six-Layer Lift Sliding Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description
The lifting and traversing stereo garage is a mechanical parking mechanism that employs the vehicle carrier to elevate or traverse in order to get access to vehicles. The number of parking places vary from a few to hundreds, and the design is modular. This stereo garage is suited for both surface and subterranean parking lots due to its flexible configuration, broad applicability, and inexpensive price.
Advantage
● Save land, flexible configuration, short construction period
● Low cost and reduced expenditures for fire protection,exterior decorating, civil engineering foundation, etc
● Automatic control, simple structure, safe and reliable
● Quick access and short waiting time
● Stable operation and low working noise
● All-round safety protection such as anti-fall, accidental entry of people and vehicles, over-long vehicle alarm, undervoltage and phase loss,overcurrent, power-off self-locking, and emergency stop
Scope of application
It is applicable to the use of supporting parking lots in commercial, institutional and residential areas.
Technical Parameter List
| Suitable for parking | 5000mm*1850mm*1550mm | |
| Equipment size(mm) | Single seat width(mm) | 2500 |
| Single-car position(mm) | 6200 | |
| One-storey height(mm) | 1900 | |
| High middle layer(mm) | 1700 | |
| Total height of equipment(mm) | 10500 | |
| Empty weight(kg) | 2000 | |
| Lift | Motor Power(kW) | 2.2/3.7 |
| speed(m/min) | 4~6 | |
| Drive mode | Chain | |
| Lifting method | Wire rope | |
| Traverse | Motor Power(kW) | 0.2 |
| Speed(m/min) | 6.8 | |
| drive mode | Chain | |
| Control mode | Fieldbus or PLC fully automatic control | |
| Operation mode | Button+IC card swipe | |
| Power supply | Three-phase five-wire system AC380 50Hz | |
The company mainly engaged in intelligent mechanical garages, intelligent robots, new energy saving technology research anddevelopment. manufacturing, sales, installation, maintenance and mechanical parts supply business. Since its establishment, thecompany has won the support and praise of domestic and foreign intelligent technology research institutions with scientific and advanced technology and exquisite manufacturng process.
