C-Type No-Evasion Intelligent Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description

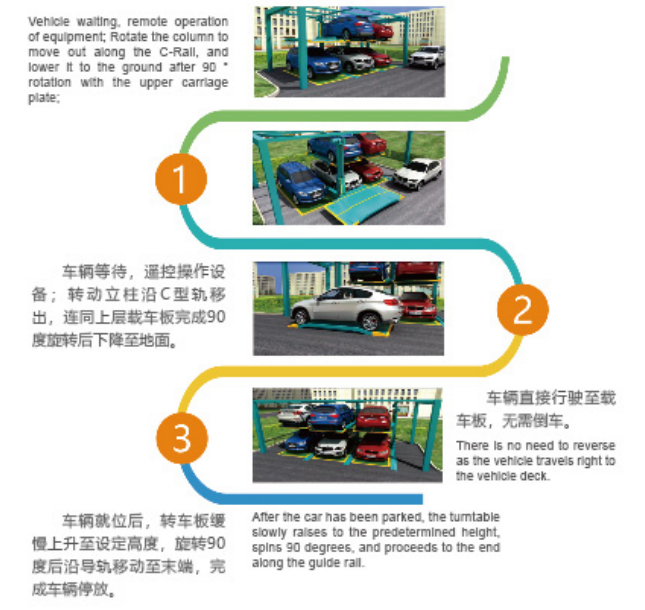

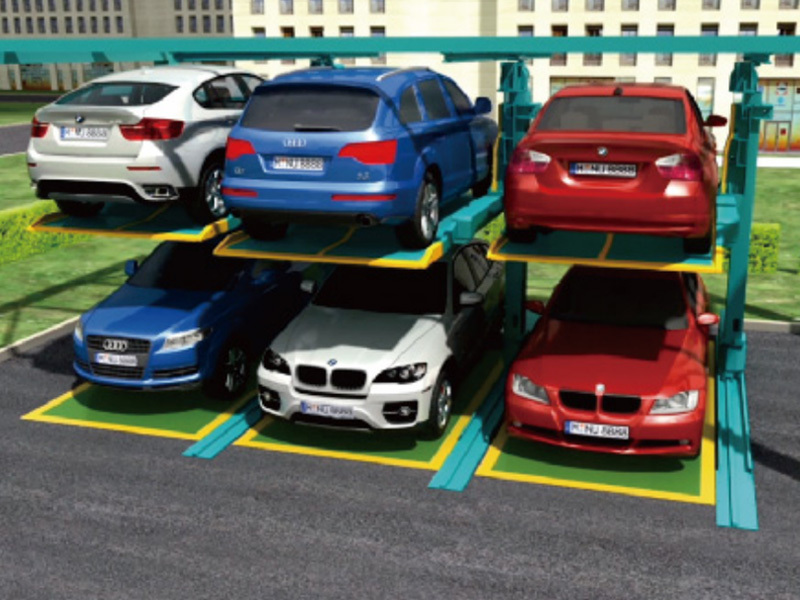

The C-type No-evasion intelligent stereo parking equipment is an intelligent stereo parking device that can be installed directly on the ground without guide rail grooves, realises the upper mechanical parking space to park and pick up the car, and does not require avoiding the lower natural parking space.
Advantage
● There is no need to avoid or wait to park and pick up the car, which is efficient and convenient
● More than ten kinds of safety protection devices ensure its reliable safety performance
● The lower floor is a natural parking space, and the upper floor is an independent mechanical parking space, with clear property rights
● It can be installed one by one, and the construction period has very little impact on the existing ground parking spaces
● No excavation, no rail groove, monorail only 3.6cm above the ground, good customer experience
Scope of application
Avoidance-free parking equipment can be installed in the original ground parking spaces and underground parking garages in squares, buildings and residential quarters, and can be widely used in narrow areas such as large hotels, supermarkets, shopping malls, commercial office buildings, institutions and residential quarters.
Technical Parameter List
| Equipment item | Unit | Standard | Aggravated | |
| Clear height | mm | ≥3600 | ||
| Car size | Long x wide x high | mm | Upper layer:≤5000*1850*1550 | Upper layer:≤5000*1950*1550 |
| Ground: ≤5000*1850*1700 | Ground:≤5000*1950*1700 | |||
| Weight | kg | Upper layer:≤2000 | Upper layer:≤2500 | |
| Lower layer | Lower laye | |||
| Rated speed | Lift | m/min | 5.0 | |
| Move | m/min | 6.5 | ||
| Rotate | r/min | 1 | ||
| Motor power | Lift | kw | 2.2 | |
| Move | kw | 0.4 | ||
| Rotate | kw | 0.4 | ||
| Drive mode | Motor plus chain | |||
| Operation mode | Remote control/keys/touch screen | |||
| Power supply | 3N,AC,380V,50Hz | |||
| Optional | Charging pile | |||
The company mainly engaged in intelligent mechanical garages, intelligent robots, new energy saving technology research anddevelopment. manufacturing, sales, installation, maintenance and mechanical parts supply business. Since its establishment, thecompany has won the support and praise of domestic and foreign intelligent technology research institutions with scientific and advanced technology and exquisite manufacturng process.
Classic Case
Changzhou Cultural Square
Changzhou Dinosaur Valley Hot Spring
Maternal and Child Health Hospital
Shuimu Nianhua Villa
