Pit Type Lifting-Transferring Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description

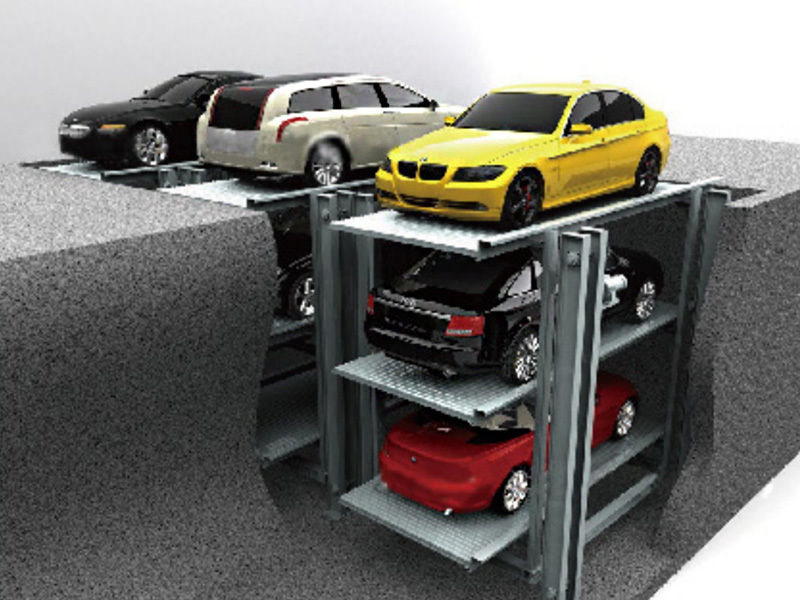

The majority of the pit lifting and traverse parking equipment uses chain lifting. Typically, there are three floors: the pit floor, the ground floor, and the upper floor. It is designed to maximise distance and maximises usage of the underground section. It is a type of apparatus with a high space-utilization rate.
Advantage
● The equipment features a straightforward construction, modular design and production, and high adaptability;
● Stable performance, extremely low failure rate;
● The automation system is equipped with fault diagnostic and display capabilities, making quick troubleshooting possible.
Scope of application
Suitable for basement or outdoor places with a floor height of not less than 3.6m.
Technical Parameter List
| Eqipment model | PSH | |
| Equipment size (length"width "height) | Class Z | 4700mm*1850mm*1550mm |
| Class D | 5000mm*1850mm*1550mm | |
| Class T1 | 5200mm*1900mm*1550mm | |
| Class K | 5000mm*1900mm*2050mm | |
| Empty weight | 2000kg | |
| Speed | (max)Lift | 5.0m/min |
| (max)Traverse | 8.0m/min | |
| Motor Power | Lifting motor | 2.2kW |
| Traverse motor | 0.2kW | |
| Operation mode | Button+IC swipe or touch screen | |
| Power supply | Three-phase five-wire system AC380 50Hz, Single phase 220v/50hz | |
| Drive mode | Chain | |
| Surface treatment | Steel structure | Galvanized/epoxy primer+polyurethane finish |
| Platen | Galvanized/plastic sprayed | |
