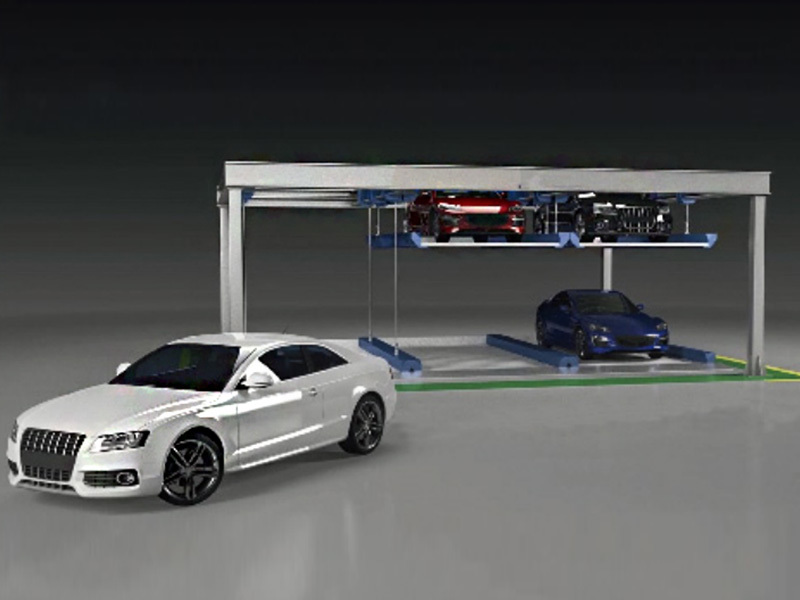

Two-Layer Lift Sliding Stereo Garage
Keywords:
Intelligent Lift Car Vertical Lifting
Category:
Description
The parking equipment that employs the car board to lift or move the vehicle is often semi-unmanned, i.e., the technique of vehicle movement after the operator has left the equipment. It consists mostly of import and export equipment, warehouse handling equipment, vehicle storage equipment, an electronic control system, and other safety detection devices.
Advantage
● Simple structure and simple operation
● Low energy consumption
● Flexible setting, scale can be large or small
● Low civil engineering requirements
● Low cost
Scope of application
The transformation of underground garage and temporary parking space of ground garage.
Technical Parameter List
| Suitable for parking | 5000mm*1850mm*1550mm | |
| Equipment size(mm) | Single seat width(mm) | 2400 |
| Single seat length(mm) | 5600 | |
| First floor height(mm) | 1800 | |
| Total height of equipment(mm) | 3600 | |
| Empty weight(kg) | 2000 | |
| Lift | Motor Power(kW) | 2.2 |
| speed(m/min) | 4~6 | |
| Driving mode | chain | |
| Lifting mode | chain | |
| Traverse | Motor Power(kW) | 0.2 |
| speed(m/min) | 6.8 | |
| Driving mode | chain | |
| Control mode | Fieldbus or PLC fully automatic control | |
| Operation mode | Button+IC swipe or touch screen | |
| Power supply | Three-phase five-wire system AC380 50Hz | |
